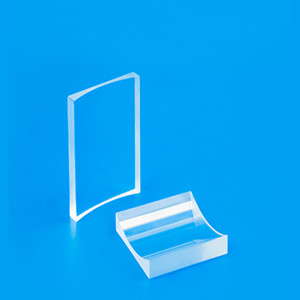

Plano-Concave Cylindrical Lens

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)


Specifications:

Material:

BK7 or UV Grade Fused Silica

Designed Wavelength:

546.1 nm

Designed Index:

1.46008±0.0005

Dimension Tolerance:

+0.0/-0.2 mm

Thickness Tolerance:

± 0.2 mm

Paraxial Focal Length:

± 2%

Clear Aperture:

> 90%

Centration:

3 arc minutes

Flatness:

λ/4 at 632.8 nm

Surface Quality:

scratch and dig 60-40

Bevel:

0.5 (0/-0.3) mm

Notes:

1. Material, besides fused silica, BK7 and any other materials are available.

2. Surface Quality could reach 40-20 or 20-10

3. Centration such as 1’, 30” is available.

4. Please show us the size and the coating specification.

Part NO.

f(mm)

A(mm)

B(mm)

tc(mm)

te(mm)

fb(mm)

R(mm)

INF-CPCV1101

-15.0

10.0

10.0

4.0

1.9

-16.3

6.90

INF-CPCV1102

-15.0

10.0

20.0

4.0

1.9

-16.3

6.90

INF-CPCV1104

-20.0

10.0

10.0

3.0

1.5

-21.0

9.20

INF-CPCV1105

-20.0

10.0

20.0

3.0

1.5

-21.0

9.20

INF-CPCV1107

-25.0

10.0

10.0

3.0

1.9

-26.3

11.50

INF-CPCV1108

-25.0

10.0

20.0

3.0

1.9

-26.3

11.50

INF-CPCV1110

-30.0

10.0

10.0

3.0

2.1

-31.4

13.80

INF-CPCV1111

-30.0

10.0

20.0

3.0

2.1

-31.4

13.80

INF-CPCV1113

-40.0

10.0

10.0

3.0

2.3

-41.6

18.40

INF-CPCV1114

-40.0

10.0

20.0

3.0

2.3

-41.6

18.40

INF-CPCV1116

-50.0

20.0

20.0

4.0

1.7

-51.2

27.60

INF-CPCV1118

-50.0

20.0

40.0

4.0

1.7

-51.2

27.60

Custom designs for other sizes and coatings are also available upon request.
