CUber Beamsplitter

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

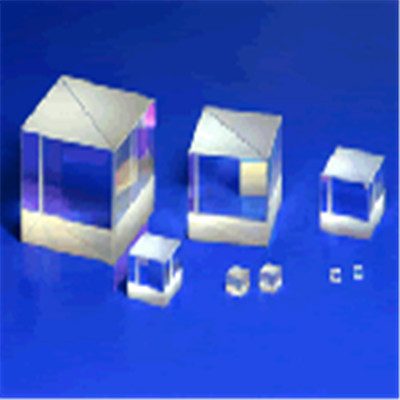

             Cube beamsplitters are constructed by cementing two precision right angle prism together with appropriate interference coating on the hypotenuse surface. The absorption loss to the coating is minimal transmission and reflection approach 50% (average) though output is partially polarized. If polarization sensitivity is critical to your online_ordering, we recommended that you select from our Polarization Cube Beamsplitter or Non-polarization Cube Beamsplitter.

Specifications :

Material: BK7 grade A, optical glass
Dimension Tolerance:±0.2mm
Flatness:λ /4 @ 632.8 nm
Surface Quality: 60-40 scratch and dig
T/R: 50/50±5%, for random polarization    T=(Ts+Tp)/2, R=(Rs+Rp)/2
Beam Deviation: <3 arc minutes
Coating:
Hypotenuse face:Partial reflectance
All input and output faces: AR Coating
Standard Coating wavelength:
Narrow Band: 488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
Broadband: 50-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm

Size(mm)

Narrow   Band

Broadband

Part   No.

Part   No.

3.2x3.2x3.2

INF-BSC1101

INF-BSC1201

5x5x5

INF-BSC1102

INF-BSC1202

10x10x10

INF-BSC1103

INF-BSC1203

12.7x12.7x12.7

INF-BSC1104

INF-BSC1204

15x15x15

INF-BSC1105

INF-BSC1205

20x20x20

INF-BSC1106

INF-BSC1206

25.4x25.4x25.4

INF-BSC1107

INF-BSC1207

Custom designs for other sizes and coatings are also available upon request.
